| Nama merek: | SUNCAR |
| Nomor Model: | 31Y1-33710 HYUNDAI R360LC-9, R380LC-9A, R380LC-9DM, R380LC-9MH, R380LC-9SH, R390LC-9(INDIA), R430LC- |
| MOQ: | Pesanan percobaan dapat diterima |
| harga: | Bisa dinegosiasikan |
| Detail Kemasan: | Tas PP di dalam, kotak karton di luar |
| Ketentuan Pembayaran: | Western Union, L/C, T/T, , D/A, D/P |

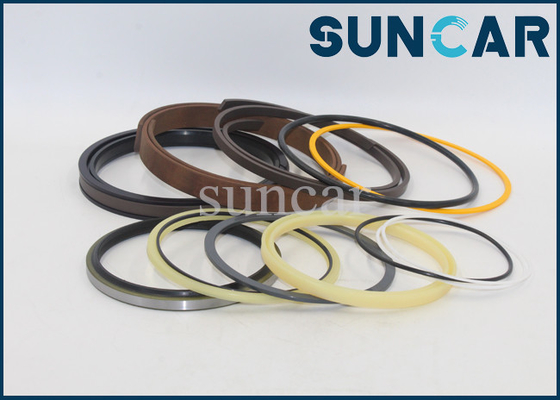

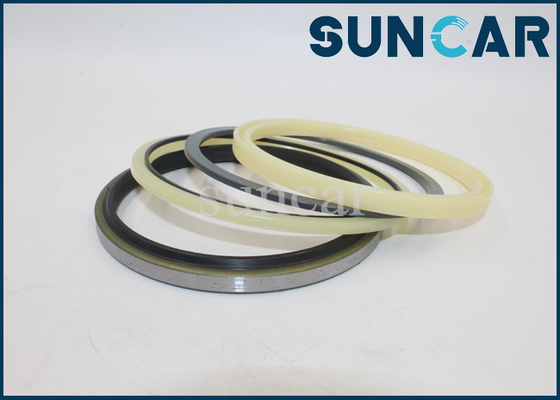

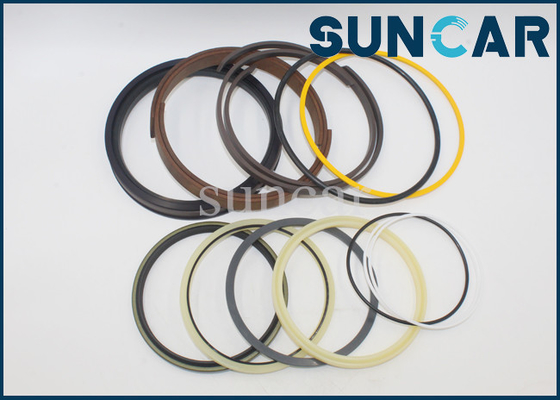

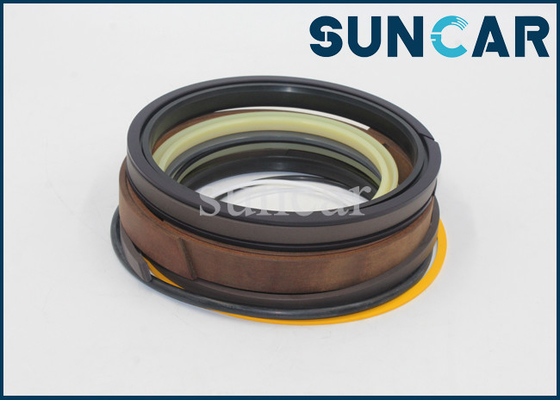

31Y1-33710 Arm Cylinder Repair Seal Kit Untuk Penggantian Bagian Hyundai R360LC-9 R380LC-9A R430LC-9
| Nama Produk | Kit Segel Perbaikan Silinder Lengan |
| Nomor Bagian | 31Y1-33710, 31Y133710 |
| Model |
9-SERIES CRAWLER EXCAVATOR R360LC-9, R380LC-9A, R380LC-9DM, R380LC-9MH, R380LC-9SH, R390LC-9(INDIA), R430LC-9, R430LC-9A, R430LC-9SH; F-SERIES CRAWLER EXCAVATOR HX380L, HX430L Hyundai |
| Bahan | PU, Karet, PTFE, NBR, HNBR, ACM, VMQ |
| Tempat asal | Cina (Daratan) |
| Nama merk | SUNCAR |
| Sedang mengemas | Tas PP di dalam, kotak karton di luar |
| Modus Pengiriman | Melalui udara, laut, ekspres (FedEx, UPS, DHL, TNT, dll.) |
| Syarat pembayaran | Western Union, Paypal, T/T, Transfer |
| Sertifikasi | ISO9001 |
| Jaminan | Tidak tersedia |
| Disesuaikan | OEM & ODM disambut |
| Grup Kategori | Kit segel silinder hidraulik, kit layanan ekskavator |
| Kondisi | Baru, asli baru |
| Sampel | Tersedia |
| Industri yang Berlaku |
Toko bahan bangunan, bengkel mesin, retail, Ada Pekerjaan Konstruksi... |
| Fitur | Kinerja penyegelan tinggi / ketahanan aus |
| Aplikasi | Tangan |
Bagian Terkait:
| pos. | Bagian No | jumlah | Nama bagian |
| *. | 31QA-50130 | [1] | ASSY SILINDER LENGAN |
| *-1. | 31Y1-33600 | [1] | ARM CYL SUB ASSY |
| 1 | 31Y1-33610 | [1] | ASSY TABUNG |
| 2 | 31Y1-33660 | [1] | ROD ASSY |
| 3 | 31Y1-33691 | [1] | KELENJAR |
| 4 | S732-120050 | [1] | BUSHING-DD2 |
| 5 | Y191-127000 | [1] | RING-SNAP |
| K6. | Y220-120113 | [1] | SEAL-ROD |
| K7. | Y180-120020 | [1] | RING-BACK UP |
| K8. | Y240-120012 | [1] | RING-BUFFER |
| K9. | Y110-120011 | [1] | WIPER-DEBU |
| 10 | Y190-136000 | [1] | RING-SNAP |
| K11. | S632-160004 | [1] | O-RING |
| K12. | 31YC-CG160 | [1] | RING-BACK UP |
| 13 | 31YC-28130 | [1] | BANTAL CINCIN |
| 14 | 31Y1-30510 | [1] | PISTON |
| K15. | Y420-170000 | [1] | SEAL-PISTON |
| K16. | Y310-170203 | [2] | PAKAI CINCIN |
| K17. | Y440-170102 | [2] | RING-DEBU |
| K18. | S632-095004 | [1] | O-RING |
| K19. | S642-095003 | [2] | RING-BACK UP |
| 20 | 31YC-68070 | [1] | KUNCI-KACANG |
| 21 | S114-100164 | [1] | SET SEKRUP |
| K22. | 31YC-99H90 | [1] | O-RING |
| 23 | S109-220954 | [14] | BOLT-SOCKET |
| 24 | 61Q6-97810 | [2] | PIN BUSHING |
| 24 | 61QH-73620 | [2] | PIN BUSHING |
| 25 | Y020-110000 | [4] | SEAL-DEBU,DLI,KPU |
| 26 | 31YC-2A020 | [1] | PEMERIKSAAN KATUP |
| 27 | 31YC-99071 | [1] | SPRING-COIL |
| K28. | S631-014004 | [1] | O-RING |
| 29 | P220-110103 | [1] | PLUG-HEX |
| 30 | 31Y1-22650 | [1] | BAND ASSY-R |
| 30-1. | 31Y1-22660 | [1] | BAND SUB ASSY |
| 30-2. | 31YC-31260 | [1] | PITA |
| 30-3. | 31YC-37050 | [1] | CLAMP-PIPE |
| 30-4. | S015-120452 | [2] | BOLT-HEX |
| 30-5. | S411-120002 | [4] | WASHER-SPRING |
| 30-6. | S015-120502 | [2] | BOLT-HEX |
| 31 | 31Y1-25090 | [1] | BAND ASSY-B |
| 31-1. | 31Y1-25100 | [1] | BAND SUB ASSY |
| 31-2. | 31Y1-25110 | [1] | BAND SUB ASSY |
| 31-3. | S015-120452 | [4] | BOLT-HEX |
| 31-4. | S411-120002 | [4] | WASHER-SPRING |
| 31-5. | S071-024330 | [2] | U-BOLT |
| 31-6. | S201-101002 | [4] | NUT-HEX |
| 31-7. | S411-100002 | [4] | WASHER-SPRING |
| 32 | 31Y1-33700 | [1] | PIPA ASSY-R |
| 33 | 31Y1-18810 | [1] | PIPA ASSY-B |
| K34. | Y171-024004 | [1] | O-RING |
| K35. | Y171-02704 | [1] | O-RING |
| 36 | S107-120604 | [4] | BOLT-SOCKET |
| 37 | S107-120654 | [4] | BOLT-SOCKET |
| K | 31Y1-33710 | [1] |
SEAL KIT |
