![Kobelco S19031-13499 S1903113499 Travel Motor Seal Kit Untuk Excavator[SK025]](/photo/pl160840567-kobelco_s19031_13499_s1903113499_travel_motor_seal_kit_for_excavator_sk025.jpg)
|
| Nama merek: | SUNCAR |
| Nomor Model: | S19031-13499 S1903113499 |
| MOQ: | Perintah percobaan yang dapat diterima |
| harga: | Bisa dinegosiasikan |
| Detail Kemasan: | Tas PP & Kotak Karton |
| Ketentuan Pembayaran: | L/C, D/A, D/P, T/T, Western Union, |

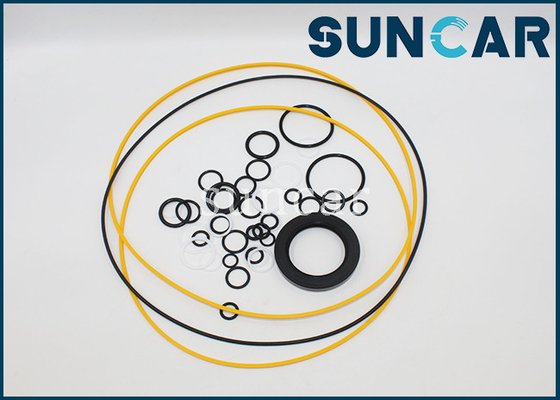

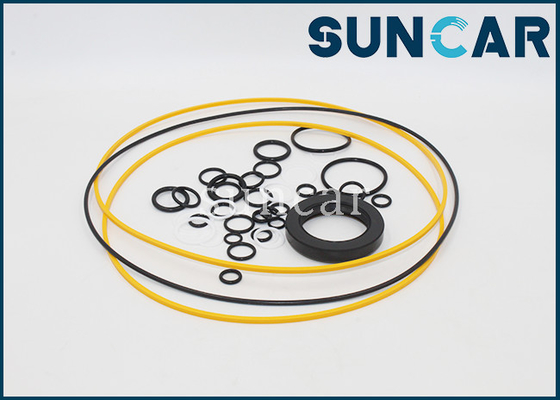

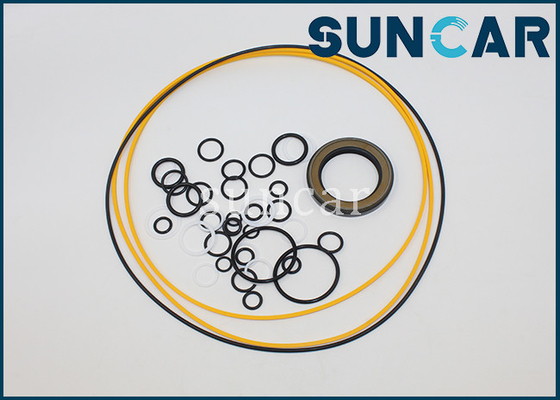

Kobelco S19031-13499 S1903113499
Kit Segel Motor Perjalanan Untuk Excavator[SK025]
| Nama produk |
Kobelco S19031-13499 S1903113499 Kit Segel Motor Perjalanan Untuk Excavator[SK025] |
|---|---|
| Bagian No. | S19031-13499S1903113499 |
| Bahan | PU, Karet, PTFE, NBR, HNBR, ACM, VMQ |
| Fitur | Ketahanan terhadap tekanan tinggi, minyak, cuaca, abrasi, pelarut |
| Kekerasan | 70-90 Pantai A |
| Warna | Hitam, Putih atau lainnya |
| Ukuran | Ukuran standar |
| MOQ | Kami Menerima Perintah Pengadilan |
| Pengemasan | PP BAG & BOX KARTON ((Menurut kebutuhan Anda) |
| Waktu Pengiriman | 3-5 hari setelah pembayaran diterima (tidak termasuk hari libur) |
| Pembayaran | Western Union, L/C, T/T, dll. |
| Pelabuhan | HUAGNPU,China (Daratan) |
| Ekspres | Fedex,TNT,UPS,DHL |
| Disesuaikan | OEM & ODM disambut |
| Aplikasi | Kobelco Excavator |
| Kondisi | Baru |
| Model yang Cocok |
SK025) - EXCAVATOR KOMPAKT BTW PV04301 - PV06200 (1/98-12/03) (10-006) - MOTOR Perjalanan (1/3) S19031-13499 |
Kit segel berikut juga bisa kami sediakan:
* Kit Segel Pompa Hidraulik
* Kontrol katup Seal Kit
* O Ring Kit Box
* Gear Pump Seal Kit
* Travel Motor Seal Kit
* Swing Motor Seal Kit
* Pilot Valve Seal Kit/ PPC Seal
* Set Segel Pengatur
* Kit Segel Gabungan Pusat
* Boom Cylinder Seal Kit
* Arm Cylinder Seal Kit
* Kit Segel Silinder Ember
* Kit Segel Pencetak
PelangganSLayanan:
| Posisi. | Bagian No. | Qty | Nama bagian |
| . . | S19031-13400 | [1] | Motor hidraulik |
| 1 | S19031-04504 | [1] | OIL SEAL |
| 2 | S14201-10950 | [1] | O-RING,3.1mm Thk x 94.4mm ID, 90 Duro |
| 3 | S14211-20950 | [1] | RING BACKUP |
| 4 | S14201-11050 | [1] | O-RING |
| 5 | S14211-21050 | [1] | RING BACKUP |
| 6 | S14201-01200 | [1] | O-RING |
| 7 | S14200-10070 | [4] | O-RING,1.6mm Thk x 6.8mm ID, 90 Duro |
| 8 | S14200-10290 | [2] | O-RING |
| 9 | S14200-10140 | [2] | O-RING |
| 10 | S14200-10110 | [2] | O-RING |
| 11 | S19031-10202 | [1] | SHAFT |
| 12 | S13000-06004 | [1] | Beras ASSY |
| 13 | S19031-13405 | [1] | PLATE, menyentuh |
| 14 | S13900-20950 | [2] | Kerangka baja |
| 15 | S19031-04408 | [1] | HOLDER, pegas |
| 16 | S19031-10209 | [1] | SPRING |
| 17 | S19031-10210 | [1] | SEAT, pegas |
| 18 | S19031-04410 | [1] | Ring, snap |
| 19 | S19031-10212 | [3] | PIN |
| 20 | S19031-10213 | [1] | Pemegang, pemegang |
| 21 | S19031-10214 | [1] | PLATE, pemegang |
| 22 | S19031-10316 | [1] | Disk |
| 23 | S19031-10317 | [1] | Piston, rem |
| 24 | S19031-10318 | [10] | SPRING |
| 25 | S19031-10220 | [2] | SPRING |
| 26 | S19031-10225 | [1] | VALVEL PILOT |
| 27 | S19030-05224 | [1] | PIN |
| 28 | S13000-06002 | [1] | Keterangan: |
| 29 | S19018-03008 | [2] | SEAT, pegas |
| 30 | S19031-13437 | [2] | SPRING |
| 31 | S19031-06838 | [2] | PDB |
| 32 | S19031-07047 | [4] | Oriffice |
| 33 | S19031-13442 | [1] | SPRING |
| 34 | S19031-06843 | [2] | PLUG |
| 35 | S19018-04213 | [5] | PLUG |
| 36 | S19031-04520 | [2] | PIN |
| 37 | S19031-07047 | [5] | Oriffice |
| 38 | S11100-51025 | [6] | Screw, Hex Socket Head, M10 x 25mm |
| 39 | S19031-02019 | [2] | PIN |
| 40 | S19031-10307 | [1] | BLOK silinder |
| 41 | S19031-10215 | [9] | PISTON ASSY |
| 42 | S19031-13430 | [1] | PELAT |
| 43 | S19018-06900 | [1] | Plunger ASSY |
| 44 | S19031-06841 | [1] | SPOOL |
| 53 | S19031-08655 | [2] | PLUG |
| 54 | S15018-10002 | [1] | PLUG |
| . . | S19031-13499 | [1] | SEAL KIT |
| . . | S19031-13491 | [1] | Sub ASSY, piston ((termasuk item 40 ~ 41) |
| . . | S19031-13492 | [1] | STUD |
|
|
